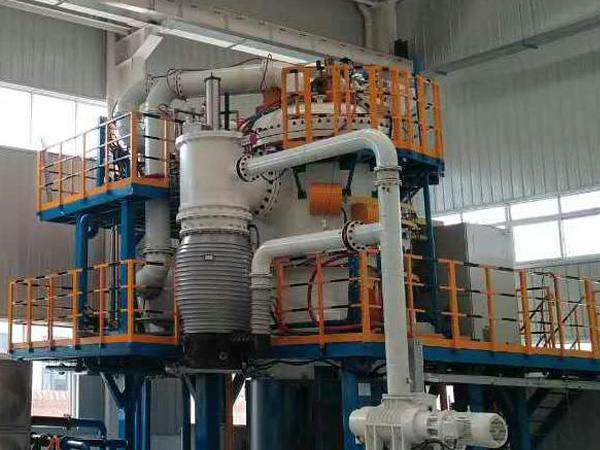

Vertical Twin Chamber Vacuum Gas Cooling Oil Quenching Furnace

Description
Vertical gas cooling oil quenching furnace is applied for vacuum oil quenching of materials like alloy steel, super high strength steel, M300 steel, etc. It is specially suitable for vacuum heat treatment of long rod type parts, plate type parts, long axle parts, landing gears and similar large size parts. The jobs treated by the furnace have little deformation and good structure.

Technical Features
1. Excellent temperature uniformity realized by octagon-shaped furnace hearth.
2. The inner trolley is overlap type stretchable structure with frequency converting function. It has a stable transportation speed with “full-fast-slow” steps, which makes the transportation time very short.
3. Protective gas can be put into the furnace to minimize the oil evaporation and ensure a fast cooling speed in the gas quenching process.
4. The vertical gas cooling oil quenching furnace has vertical twin chambers, user can choose the vertical structural moving type and layout according to their own requirements.
5. High volume oil tank and hot oil cooling by external circulation and heat exchanger, achieving has a better cooling effect.
6. Two cooling types - oil stirring and oil injection cooling, are used for various kinds of products, which makes the product have less deformation.
7. Vacuum twin chamber oil quench furnace features larger load capacity and higher efficiency comparing with other same specification products.

Optional Configuration of Vertical Gas Cooling Oil Quenching Furnace
1. Twin chamber vertical structure: integral type/movable heating chamber type/movable oil tank type
2. Quenching oil stirring type: paddle stirring/nozzle jetting/both of the two types
3. Furnace hearth: Graphite heating elements and graphite felt heat insulation/Nichrome heating elements and stainless steel heat insulation/Molybdenum heating elements and metal heat insulation
4. Vacuum pump and gauge: Foreign brand/high-quality Chinese brand
5. Vacuum degree: High vacuum/medium/vacuum
6. PLC: OMRON/Siemens/Mitsubishi
7. Temperature controller: SHIMADEN/EUROTHERM/Honeywell
8. Thermocouple: S type, K type, N type
9. Recorder: Paperless recorder/paper recorder
10. HMI: Simulation screen/Touch screen
11. Electric components: High-quality domestic brand/Schneider/Siemens

Specification of Vertical Gas Cooling Oil Quenching Furnace
Spec\Model VVOQ-0812D VVOQ-1015D VVOQ-1218D VVOQ-1520D VVOQ-1825D
Effective hot zone size Φ D×H (mm) Φ800 × 1200 Φ1000 × 1500 Φ1200 × 1800 Φ1500 × 2500 Φ1800 × 3000
Load capacity of vacuum twin chamber oil quench furnace (kg) 600 1000 1200 2000 2500
Heating Power (kW) 240 330 450 570 750
Max.Temperature(°C) 1050 1050 1050 1050 1050
1350 1350 1350 1350 1350
Temperature Uniformity (°C) ±5 ±5 ±5 ±5 ±5
Vacuum degree (Pa) 4 × 10-1 4 × 10-1 4 × 10-1 4 × 10-1 4 × 10-1
4 × 10-3/6 × 10-4 4 × 10-3/6 × 10-4 4 × 10-3/6 × 10-4 4 × 10-3/6 × 10-4 4 × 10-3/6 × 10-4
Pressure Increase Rate (Pa/h) ≤0.26 ≤0.26 ≤0.26 ≤0.26 ≤0.26
≤0.65 ≤0.65 ≤0.65 ≤0.65 ≤0.65
Transportation time (S) ≤20 ≤36 ≤45 ≤60 ≤72
Oil tank volume (L) 5000 98000 11000 180000 240000
Cooling gas (99.995%) N/Ar N/Ar N/Ar N/Ar N/Ar
Gas cooling pressure (bar) 2 2 2 2 2
