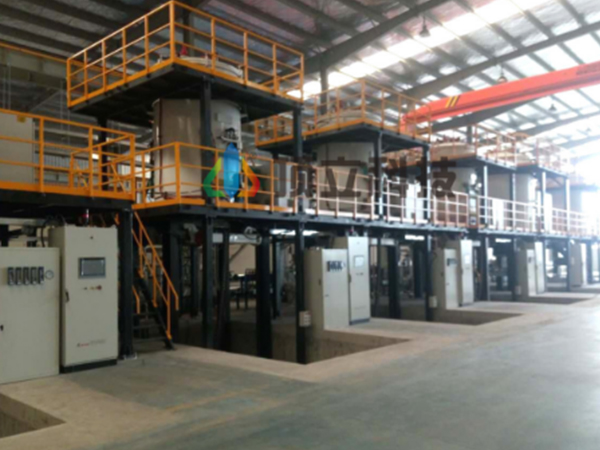

C-C / Carbon-ceramic Brake Disc Preparation Equipment

Description
The furnace is mainly used for the production of high performance brake disc made of C/C and Carbon/ceramic materials.

Optional Configuration of C-C / Carbon-ceramic Brake Disc Preparation Equipment
1. Furnace door: lead screw lift / hydraulic lift / manually-operated lift, manual tight / auto lock-ring tight.
2. Furnace vessel: all carbon steel / inner layer stainless steel / total stainless steel / Q345Q.
3. Furnace hot zone: soft carbon felt / soft graphite felt / hard composite felt / refractory brick +ceramic fiber / CFC.
4. Heating element: isostatic press graphite / fine graphite / Ni-Cr; Fe-Cr-Nb.
5. Muffle: high purity, high strength and high density graphite / fine size graphite / SUS316L.
6. Process gas system: volumetric flow meter / mass flow meter; manual valve / auto valve / foreign brand / Chinese brand.
7. Vacuum pump and gauge: foreign brand / Chinese brand.
8. PLC: OMRON/Siemens.
9. Temperature controller: SHIMADEN / EUROTHERM.
10. Thermocouple: C / S / K / N type.
11. Infrared meter: Single color / double color, CHINO / Raytek.
12. HMI: simulation screen / touch screen / industrial personal computer.
13. Electric components: CHINT / Schneider / Siemens.
14. Medium frequency power: ICBT / KGPS.

Specifications
C-C / Carbon-ceramic Brake Disc Preparation Equipment
Equipment Type Chemical vapor deposition furnace Vacuum graphitization furnace
Spec/Model VCVD-0610-C VCVD-1120-C ICVD-0610-C ICVD-1120-C VIG-0610-C VIG-1120-C HVG-131320-C
Usable Space (W × H × L) (mm) φ600 × 1000 φ1100 × 2000 φ600 × 1000 φ1100 × 2000 φ600 × 1000 φ1100 × 2000 1300 × 1300 × 2000
Max. Temperature (°C) 1200 1200 1200 1200 2600 2600 2600
Temperature Uniformity (°C) ±5 ±7.5 ±15 ±20 ±15 ±20 ±10
Ultimate Vacuum (Pa) 50 50 50 50 50 50 50
Equipment Type Siliconizing furnace Vacuum carbonization furnace Vacuum pressure impregnation furnace
Spec/Mode ISII-0610 ISII-1120 VSII-131320 VVCI-0608 VVC-1015 VPII-0608 VPI-1015
Usable Space (W × H × L) (mm) φ600 × 1000 φ1100 × 2000 1300 × 1300 × 2000 φ600 × 800 φ1000 × 1500 φ600 × 800 φ1000 × 1500
Max. Temperature (°C) 2000 2000 2000 1000 1000 400 400
Temperature Uniformity (°C) ±7.5 ±7.5 ±10 ±7.5 ±10 ±10 ±15
Ultimate Vacuum (Pa) 50 50 50 50 50 50 50
Ultimate Vacuum (MPa) / / / / / 5 5
