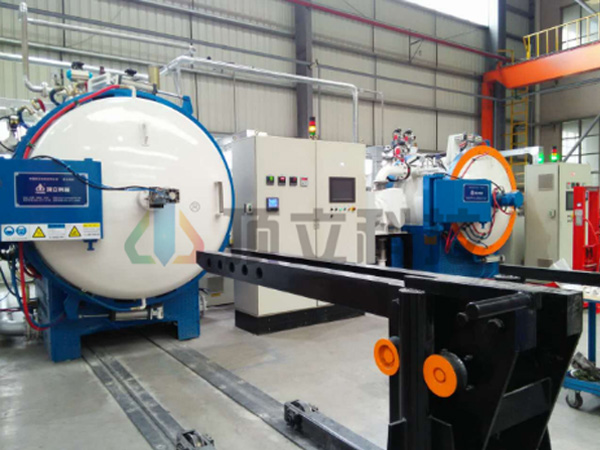

Horizontal Single Chamber Vacuum High Pressure Gas Quenching Furnace

Description
High pressure gas quenching furnace applied for gas quenching of materials like tool steel, die steel, high speed steel, etc. It has no special dimension and shape requires for the components. The components features little deformation and good cooling effect.

Technical Features
1. The furnace is horizontal, single chamber, bottom loading structure. Furnace door open type can be customized design.
2. Excellent temperature uniformity realized by octagon-shaped furnace hearth.
3. For different cooling speed requirements, it can use single heat exchanger furnace hearth cooling or dual and multi-stage heat exchanger furnace hearth cooling.
4. For different components, horizontal single chamber gas quenching furnace is optional to use backside gas inlet quenching circulation system or front side gas inlet quenching circulation system.
5. Unique two-stage heat exchanger is adopted, so the heat exchange area is twice than before.

Optional Configuration of High Pressure Gas Quenching Furnace
1. Vacuum degree: High vacuum/medium vacuum
2. PLC: OMRON/Siemens/Mitsubishi
3. Temperature controller: SHIMADEN/EUROTHERM/Honeywell
4. Thermocouple: S type, K type, N type
5. Recorder: Paperless recorder/paper recorder
6. HMI: Simulation screen/Touch screen
7. Electric components: High-quality domestic brand/Schneider/Siemens
8. Furnace door: On-line/off-line, vertical up and down, rotation
9. Gas quenching type: 360° nozzle gas inject cooling/external heat exchanger cooling
10. Furnace hearth: Graphite heating elements and graphite felt heat insulation/Molybdenum heating element and metal heat insulation
11. Vacuum pump and gauge: Foreign brand/high-quality Chinese brand

Specifications of High Pressure Gas Quenching Furnace
Spec\Model HVGQ-334S HVGQ-446S HVGQ-557S HVGQ-669S HVGQ-7711S HVGQ-8812S HVGQ-9915S
Effective hot zone size W×H×L (mm) 300 × 300 × 400 400 × 400 × 600 500 × 500 × 700 600 × 600 × 900 700 × 700 × 1100 800 × 800 × 1200 900 × 900 × 1500
Load capacity of horizontal single chamber gas quenching furnace(kg) 75 250 400 600 1000 1200 1500
Heating Power (kW) 48 75 90 150 270 360 480
Max.Temperature(°C) 1150 1150 1150 1150 1150 1150 1150
1350 1350 1350 1350 1350 1350 1350
Temperature Uniformity (°C) ±5 ±5 ±5 ±5 ±5 ±5 ±5
Vacuum degree (Pa) 4 × 10-1 4 × 10-1 4 × 10-1 4 × 10-1 4 × 10-1 4 × 10-1 4 × 10-1
4 × 10-3/6 × 10-4 4 × 10-3/6 × 10-4 4 × 10-3/6 × 10-4 4 × 10-3/6 × 10-4 4 × 10-3/6 × 10-4 4 × 10-3/6 × 10-4 4 × 10-3/6 × 10-4
Pressure Increase Rate (Pa/h) ≤0.26 ≤0.26 ≤0.26 ≤0.26 ≤0.26 ≤0.26 ≤0.26
≤0.65 ≤0.65 ≤0.65 ≤0.65 ≤0.65 ≤0.65 ≤0.65
Gas quenching pressure (bar) 6/10/15/20 6/10/15/20 6/10/15/20 6/10/15/20 6/10/15/20 6/10/15/20 6/10/15/20
Cooling gas (100.00%) N2/Ar/He N2/Ar/He N2/Ar/He N2/Ar/He N2/Ar/He N2/Ar/He N2/Ar/He
