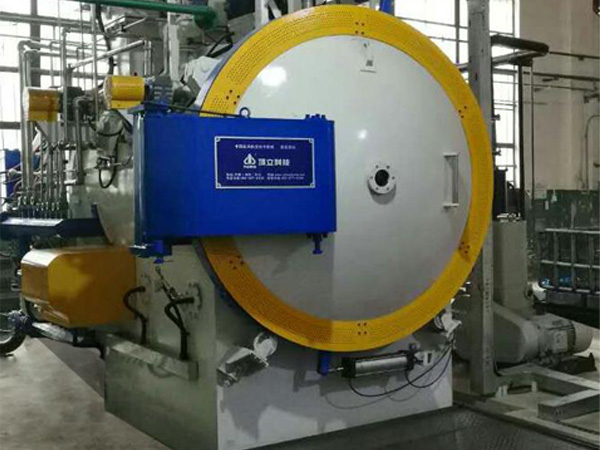

Horizontal Twin Chamber Vacuum High Pressure Gas Quenching Furnace

Description
Horizontal gas quenching furnace is used for gas quenching of materials like tool steel, die steel, high speed steel, super high strength steel, etc. The heating chamber is separated with the quenching chamber, which saves much energy and has good cooling.

Technical Features
1. Vacuum twin chamber gas quenching furnace uses horizontal, two chambers, bottom loading structure. Furnace door type can be customized design.
2. Gas quenching chamber is an independent part, which has a high heat exchanging speed.
3. The inner loading trolley is integral structure. The materials transportation is stable and finish in a short time.
4. According to the treating jobs, users can choose to configure axial-flow type high power gas quenching fan or centrifugal high power gas quenching fan.

Optional Configuration of Horizontal Gas Quenching Furnace
1. Thermocouple: S type, K type, N type
2. Recorder: Paperless recorder/paper recorder
3. HMI: Simulation screen/Touch screen with industry computer
4. Electric components: High-quality domestic brand/Schneider/Siemens
5. Furnace door: On-line/off-line, vertical up and down, rotating type
6. Gas quenching type: cold airflow vertically cooling/cold airflow side-to side cooling
7. Furnace hearth: Graphite heating elements and graphite felt heat insulation/Molybdenum heating element and metal heat insulation
8. Vacuum pump and gauge: Foreign brand/high-quality Chinese brand
9. Vacuum degree: High vacuum/medium vacuum
10. PLC: OMRON/Siemens/Mitsubishi
11. Temperature controller: SHIMADEN/EUROTHERM/Honeywell

Specifications of Horizontal Gas Quenching Furnace
Spec\Model HVGQ-334D HVGQ-446D HVGQ-557D HVGQ-669D HVGQ-7711D HVGQ-8812D HVGQ-9915D
Effective hot zone size W×H×L (mm) 300 × 300 × 400 400 × 400 × 600 500 × 500 × 700 600 × 600 × 900 700 × 700 × 1100 800 × 800 × 1200 900 × 900 × 1500
Load capacity (kg) 75 250 400 600 1000 1200 1500
Heating Power (kW) 48 75 90 150 270 360 480
Max.Temperature (°C) 1150 1150 1150 1150 1150 1150 1150
1350 1350 1350 1350 1350 1350 1350
Temperature Uniformity (°C) ±5 ±5 ±5 ±5 ±5 ±5 ±5
Vacuum degree of of vacuum twin chamber gas quenching furnace (Pa) 4 × 10-1 4 × 10-1 4 × 10-1 4 × 10-1 4 × 10-1 4 × 10-1 4 × 10-1
4 × 10-3/6 × 10-4 4 × 10-3/6 × 10-4 4 × 10-3/6 × 10-4 4 × 10-3/6 × 10-4 4 × 10-3/6 × 10-4 4 × 10-3/6 × 10-4 4 × 10-3/6 × 10-4
Pressure Increase Rate (Pa/h) ≤0.26 ≤0.26 ≤0.26 ≤0.26 ≤0.26 ≤0.26 ≤0.26
≤0.65 ≤0.65 ≤0.65 ≤0.65 ≤0.65 ≤0.65 ≤0.65
Transportation time (S) ≤12 ≤15 ≤20 ≤25 ≤30 ≤30 ≤35
Gas quenching pressure (bar) 6/10/15/20 6/10/15/20 6/10/15/20 6/10/15/20 6/10/15/20 6/10/15/20 6/10/15/20
Cooling gas (100.00%) N2/Ar/He N2/Ar/He N2/Ar/He N2/Ar/He N2/Ar/He N2/Ar/He N2/Ar/He
