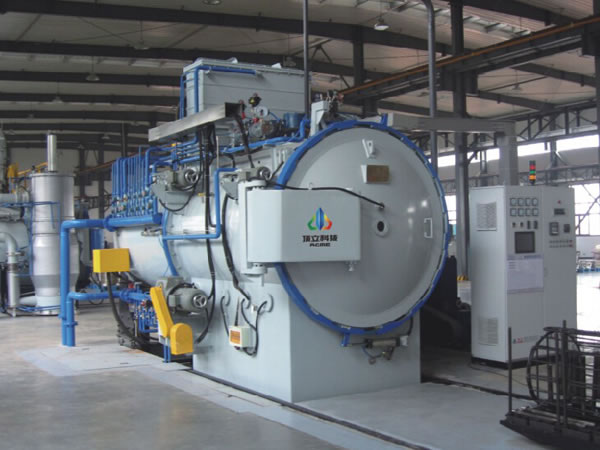

Horizontal Twin Chamber Vacuum Oil Quenching Gas Cooling Furnace

Description
The vacuum oil quenching furnace is suitable for vacuum oil quenching of materials like alloy steel, bearing steel, spring steel, die steel, high-speed steel, etc. Horizontal twin chamber oil quenching furnace can also applied to aging and gas cooling process for the above materials.

Technical Features
1. Excellent temperature uniformity realized by octagon-shaped furnace hearth.
2. The heating elements adopt unique non-ceramic supporting technology. It can be used for five years without any insulation problem.
3. The inner trolley is overlap type stretchable structure with frequency converting function. It has a stable transportation speed with “full-fast-slow” steps, which makes the transportation time very short.
4. Build-in heat exchanger and forced gas cooling type contribute to the uniformed and high-low-rating jet gas, which eventually makes the cooling speed very fast.
5. Horizontal twin chamber oil quenching furnace is horizontal, twin chamber, which features compact and reasonable and beautiful.
6. High volume oil tank and hot oil cooling by external circulation and heat exchanger, achieving has a better cooling effect.
7. Two cooling types -- oil stirring and oil injection cooling, are used for various kinds of products, which makes the product have less deformation.
8. The horizontal twin chamber heat treatment furnace features larger load capacity and higher efficiency comparing with other same specification products.

Optional Configuration of Vacuum Oil Quenching Furnace
1. Furnace door: On-line/off-line, vertical up and down, rotating
2. Insulation gate in the middle: Mechanically-driven/pneumatically-driven
3. Quenching oil flow type: Paddle stirring/nozzle jetting/both of the two types
4. Furnace hearth: Graphite heating elements and graphite felt heat insulation/Nichrome heating elements and stainless steel heat insulation/Molybdenum heating elements and metal heat insulation
5. Gas cooling type: build-in heat exchanger/external heat exchanger/none
6. Vacuum pump and gauge: Foreign brand/high-quality Chinese brand
7. Vacuum degree: High vacuum/medium vacuum
8. PLC: OMRON/Siemens/Mitsubishi
9. Temperature controller: SHIMADEN/EUROTHERM/Honeywell
10. Thermocouple: S type, K type, N type
11. Recorder: Paperless recorder/paper recorder
12. HMI: Simulation screen/Touch screen
13. Electric components: High-quality domestic brand/Schneider/Siemens

Specifications of Vacuum Oil Quenching Furnace
Spec\Model HVOQ-334D HVOQ-446D HVOQ-557D HVOQ-669D HVOQ-7711D HVOQ-8812D HVOQ-9915D
Effective hot zone size W×H×L (mm) 300 × 300 × 400 400 × 400 × 600 500 × 500 × 700 600 × 600 × 900 700 × 700 × 1100 800 × 800 × 1200 900 × 900 × 1500
Load Capacity (kg) 75 250 400 600 1000 1200 1500
Heating Power (kW) 48 75 90 150 270 360 480
Max.Temperature(°C) 1150 1150 1150 1150 1150 1150 1150
1350 1350 1350 1350 1350 1350 1350
Temperature Uniformity (°C) ±5 ±5 ±5 ±5 ±5 ±5 ±5
Vacuum degree (Pa) 4 × 10-1 4 × 10-1 4 × 10-1 4 × 10-1 4 × 10-1 4 × 10-1 4 × 10-1
4 × 10-3/6 × 10-4 4 × 10-3/6 × 10-4 4 × 10-3/6 × 10-4 4 × 10-3/6 × 10-4 4 × 10-3/6 × 10-4 4 × 10-3/6 × 10-4 4 × 10-3/6 × 10-4
Pressure Increase Rate (Pa/h) ≤0.26 ≤0.26 ≤0.26 ≤0.26 ≤0.26 ≤0.26 ≤0.26
≤0.65 ≤0.65 ≤0.65 ≤0.65 ≤0.65 ≤0.65 ≤0.65
Transportation time (S) ≤12 ≤15 ≤20 ≤25 ≤35 ≤35 ≤40
Oil tank volume (L) 800 2000 3500 5500 9500 11000 14000
Cooling gas (99.995%) N2/Ar N2/Ar N2/Ar N2/Ar N2/Ar N2/Ar N2/Ar
Gas cooling pressure (bar) 2 2 2 2 2 2 2
