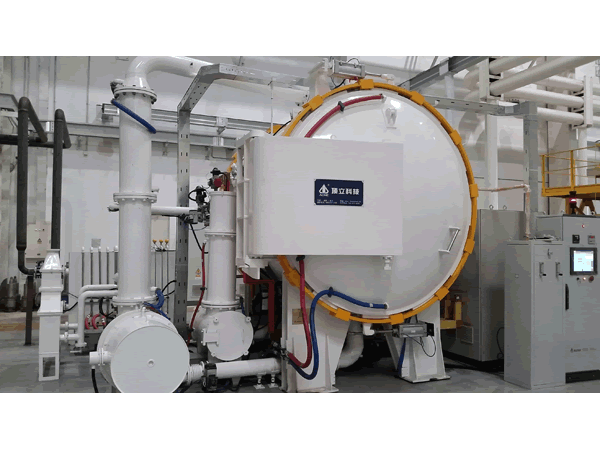

Horizontal Vacuum Pyrolysis Furnace

Description
Horizontal vacuum pyrolysis furnace is used for vacuum pyrolysis sinter process of C/C, carbon or ceramic composite material.

Technical Features
1.The vacuum pyrolysis tube furnaces adopt electrical resistant heating with temperature compensation or multiple temperature zone control, which features great temperature uniformity.
2.Unique ACME super high temperature and high current feeding technology achieves the equipment can be long term stable used at 1800°C.
3.Installed with special sealing muffle to minimize the silicon vapor and by-pass materials contamination to the heating element and heat insulation materials.
4.The furnace uses special exhaust gas treatment device, which is friendly to environment and convenient for cleaning.

Optional Configuration of Horizontal Vacuum Pyrolysis Furnace
1. Furnace door: Hinge turning type/ trolley type, Manual tight/Auto lock-ring tight
2. Furnace vessel: All carbon steel/Inner layer stainless steel/Total stainless steel
3. Furnace hot zone: Soft carbon felt/Soft graphite felt/Hard composite felt /CFC
4. Heating element and muffle: Isostatic press graphite/Press high purity, high strength and high density graphite/ fine size graphite
5. Vacuum pump and gauge: Foreign brand/Chinese brand
6. HMI: Simulation screen/Touch screen/Industrial personal computer
7. PLC: OMRON/Siemens
8. Temperature controller: SHIMADEN/EUROTHERM
9. Thermocouple: C type (Tungsten sheath/Ceramic sheath)
10. Recorder: Paperless recorder/paper recorder, Foreign brand/Chinese brand
11. Electric components: CHINT/Schneider/Siemens
12. Load truck: Roller type/fork type

Specifications of Horizontal Vacuum Pyrolysis Furnace
Spec\Model HVP-040406 HVP-060609 HVP-080812 HVP -101015 HVP-121225 HVP-151530
Working Zone Size (W × H × L) (mm) Φ400 × 400 × 600 Φ600 × 600 × 900 Φ800 × 800 × 1200 Φ1000 × 1000 × 1500 Φ1200 × 1200 × 2500 Φ1500 × 1500 × 3000
Max. Temperature (°C) 1800 1800 1800 1800 1800 1800
Temperature Uniformity (°C) ±5 ±5 ±7.5 ±7.5 ±10 ±10
Ultimate Vacuum (Pa) 50 50 50 50 50 50
Pressure Increase Rate (Pa/h) 0.67 0.67 0.67 0.67 0.67 0.67
The above parameters can be adjusted to the process requirements, they are not as acceptance standard, the detail spec. will be stated in the technical proposal and agreements.
