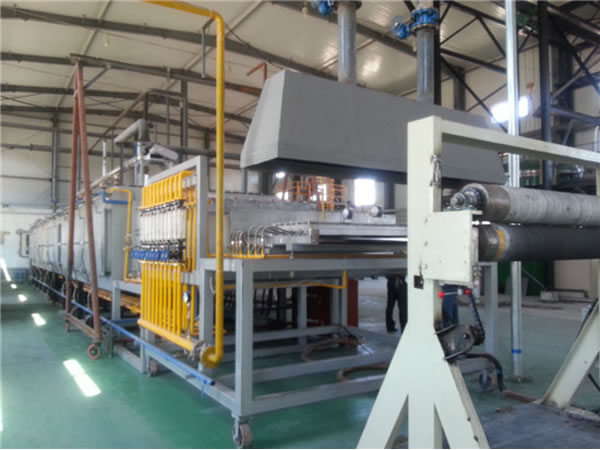

Continuous Carbonization Furnace

Description
Continuous carbonization furnace is mainly used for the continuous high temperature carbonization under controlled atmosphere of all carbon fibers, silicon carbide fibers and felt materials. It has mesh belt type and no belt type and it is equipped with optional continuous activation and high temperature graphitization treatment.

Technical Features
1. The continuous carbonization tube furnace can add steam activation treatment and continuous high temperature grapgitization function.
2. The furnace has mash belt type and no belt self tension type, for mash belt type, which max. temperature can reach up to 1150°C.
3. The max. temperature of No belt type can reach up to 1250°C or higher.

Optional Configuration of Continuous Carbonization Furnace
1. Heating element material: SiC/High temperature alloy
2. High temperature section muffle material: SiC and SiN/SUS310S
3. HMI: Simulation screen/Touch screen/Industrial personal computer
4. PLC: OMRON/Siemens
5. Temperature controller: SHIMADEN/EUROTHERM
6. Thermocouple: C type, S type
7. Electric components: CHINT/Schneider/Siemens

Specifications of Continuous Carbonization Furnace
Spec\Model MLC-200 MLC-1300-9 MLC-1800-9
Furnace Hearth (mm) 200 1300 1800
Furnace Chamber Length (mm) / Tar exhaust section 10m + carbonization section 5m
Max. Temperature (°C) 1250/High temperature carbonization
Cross-section Temperature Uniformity ±5 ±7.5
Speed Adjustment Mode VFD
The above parameters can be adjusted to the process requirements, they are not as acceptance standard, the detail spec. will be stated in the technical proposal and agreements.
