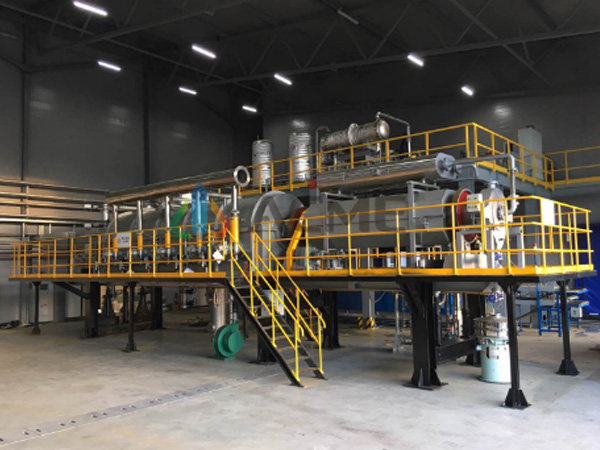

High Temperature Rotary Calcination/Reduction Furnace

Rotary furnace is mainly used for metal salt calcination and metal oxide reduction process, such as APT calcination, blue tungsten reduction, etc.

Technical Features
1. The rotary reduction furnaces use rotary tube which will result in good powder fluidity.
2. The intermittent loading and unloading type assures good sealing performance and low gas consumption with gas recycling.
3. Full automatic loading and unloading is available, which assures stable product quality and low labor force.
4. Furnace has the functions of remote control operation, remote malfunction diagnosis and remote program update functions.

Optional Configuration of Rotary Furnace
1. Refractory material: silicate aluminum fiber/alumina ceramic fiber/high alumina brick
2. Heater material: 0Cr21Al6Nb, 0Cr27Al7Mo2
3. Tube material: SUS304/SUS310S/RA330/RA600
4. Sealing type: fill sealing/graphite+metal sealing
5. Loading type: vacuum feeding/vibration feeding/manual feeding
6. Operation panel: simulation screen/touch screen/industrial computer
7. PLC: OMRON/Siemens
8. Temperature controller: SHIMADEN/EUROTHERM
9. Thermocouple: C type/S type/N type
10. Recorder: Paperless recorder/paper recorder, Foreign brand/Chinese brand
11. Electric components: CHINT/Schneider/Siemens

Specifications of High Temperature Rotary Calcination/Reduction Furnace
Spec\Model RF-400-4(G) RF-600-5(G) RF-800-6(G)
Tube diameter (mm) 400 600 800
Heating zone 4 5 6
Heating chamber length (mm) 5600 6500 8000
Max.temperature (°C) 1050 1050 1050
Temperature Uniformity (°C) ±5 ±5 ±5
Heating method Electric/ natural gas
Process gas of rotary reduction furnaces Ar/N2/H2/NH3
Total size L×W×H (mm) 12000 × 4000 × 4000 14000 × 5000 × 4500 16500 × 5500 × 4500
The above specifications are defined according to tungsten powder reduction process. These specifications can be adjusted to the process requirements, they are not as acceptance standard, the detail spec. will be stated in the technical proposal and agreements.
